Documentation

Manual feuerball3D Studio

Here you will find a detailed description of all functions of feuerball3D Studio. The whole user manual can be also downloaded as feuerball3D-Studio user manual in PDF-format.

feuerball3D Studio
feuerball3D Studio

Download

Download feuerball3D trial

Download your free trial version!

Table of contents

  1. System requirements
  2. Introduction
  3. Menus
    1. File
    2. View
    3. Extras
    4. Help
  4. Toolbar
    1. Preview zoom
    2. Rotate images
    3. Crop images
  5. Image list
  6. Properties
    1. Input files
    2. Animation
    3. Buttons
    4. Rotation
    5. Zoom
    6. Hotspots
    7. Multiaxial Animation
    8. Miscellaneous
  7. Create Animation
  8. Include 360-degree animation to a website
    1. What needs to be uploaded?
    2. How to embed the animation on websites?
    3. How to include the animation on special sites (e.g. eBay)?
  9. Tips and tricks to create perfect product images for a 360° animation
  10. FAQs & appropriate solutions
  11. About feuerball3D

1. System requirements

The software feuerball3D Studio is available for MAC and PC.

MAC-version

VersionMac OS X Version 10.6 ‘Snow Leopard’
Mac OS X Version 10.7 ‘Lion’
Mac OS X Version 10.8 ‘Mountain Lion’
ProcessorIntel-Prozessor with at least 1 GHz (Core 2 Duo)
MemoryAt least 1 GHz
Additional software

Windows/PC-version

VersionWindows XP Service Pack 3
Windows Vista
Windows 7 (supports 32- and 64-bit-version)
Windows 8
ProcessorAt least 1 GHz
MemoryAt least 256 MB
Additional software

<< back to table of contents

2. Introduction

feuerball3D-Studio user manual in PDF-format

Using feuerball3D Studio you can create 360-degree spin product animations of your product photos quick and easy. The software is especially designed for the combined use with an automatic turntable. Thus it can work directly with the output files (JPG-format) of the camera and resize or crop them.

The use of templates helps to take over settings of any previous build animation and therefore to shorten the effort. Thus many animations using the same style can be build in a very short time.

<< back to table of contents

3. Menüs

The menus provide access to many basic features in feuerball3D Studio. The following briefly describes the functions of each menu.

Screenshot feuerball3D Menu
Image: Menus

<< back to table of contents

File

– New Animation
A new animation will be build. All existing settings (cropping rectangle, images, settings) are reset to initial state.

– Select Template
For every animation a XML-file is created in which all settings of the animation are stored. If you want to create a similar looking animation just load the XML-file of this animation and all settings of that animation will been taken over. Every XML-file can be used as a template that way.
You just have to select the new images (and crop the images) and can build your animation.

– Select Images
Choose a folder on your local computer where all images of an animation are placed. Select the images you want to use or just choose all images. All selected images will be load into the program.

– Create Animation
After having load all images needed and adjusted your settings you can create the animation. All images will then be processed and the animation will be created according to your settings.

– Recent Templates
A list containing the last five templates used.

– Recent Images
A list containing the last five image folders used.

<< back to table of contents

View

– Toolbar
Show/hide the toolbar.

– Properties
Show/hide the properties sidebar.

<< back to table of contents

Extras

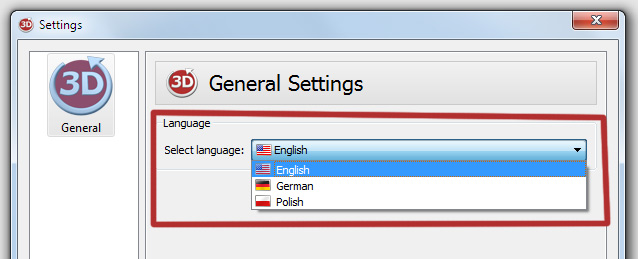

– Settings
Change the program language and choose between German, English, and Polish. The language will be updated at the next initialization of the program.

Screenshot feuerball3D Language Settings
Image: Change language (Extras – Settings)

<< back to table of contents

Help

– Online Help
Link to the documentation of the software (manual/help).

– Visit Website
Link to the web page of the software with more information, tutorials, examples.

– About Qt
More information about Qt platform application.

– About feuerball3D-Studio
More information about feuerball3D-Studio and the software version.

<< back to table of contents

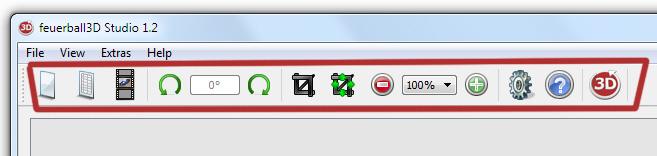

4. Toolbar

The Toolbar is a shortcut to the most important functions of all menus. Complemented with some image processing functions to process the images used.
More information and explanations to all shortcut functions (New Animation, Select Template, Select Images, Settings, Online Help, and Create Animation) of the toolbar can be found in a previous chapter.

Screenshot feuerball3D Toolbar
Image: Toolbar

The Toolbar can be added to the preview window either left or right by drag & drop.

<< back to table of contents

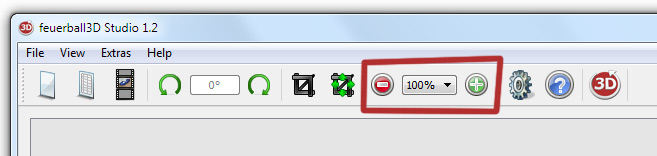

Preview zoom
Picture preview can be scaled so that the hole image can be seen on each screen in total.

Screenshot feuerball3D Toolbar Preview
Image: Toolbar – Scale image preview

<< back to table of contents

Rotate images
All images can be rotated by 90° in any direction.

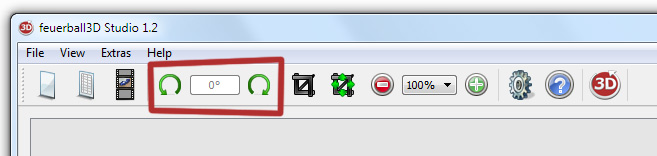

Screenshot feuerball3D Toolbar Rotate
Image: Toolbar – Rotate images

<< back to table of contents

Crop images
The crop rectangle can be enabled, disabled or reset in the toolbar. If the cropping rectangle has been enabled the rectangle can be resized by dragging the edges and sides of the rectangle.
Settings of the rectangle will be applied to all images automatically. By clicking on a different image in the image list, you can check whether an image does not fit into the rectangle and therefore correct the rectangle.
Exact values for the rectangle (size, position) can be inserted in the properties window (Zoom – Crop Rectangle).

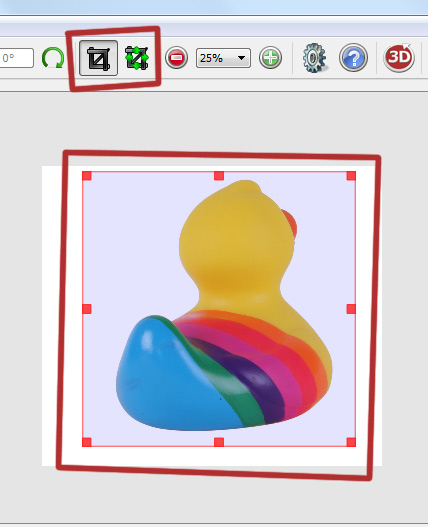

Screenshot feuerball3D Toolbar Clip
Image: Toolbar – Crop images

<< back to table of contents

5. Image list

At the bottom of the program there is a horizontal list with all images used for the animation. Beneath a small preview image the file name of each picture is shown.

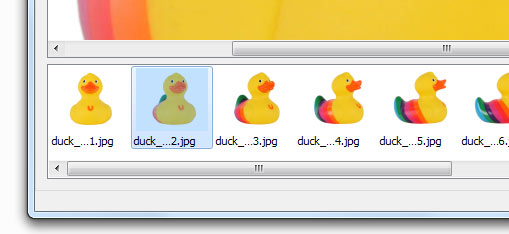

Screenshot feuerball3D Image list
Image: Image list – lists all used images

If an image of the images list is selected it is shown in the preview window in original size. The number of the selected image as well as the quantity of all images is shown in the status bar at the bottom right of the program.
To remove an image of the image list right-click on an image and the image can be removed in the opening menu. The image won’t be used in the animation any more.

<< back to table of contents

6. Properties

On the right side of the program is the sidebar containing all properties to adjust the animation. Most of the properties will be stored in the XML-file of the animation and can be loaded to the program as templates.
A standard template (default.xml) containing the default settings can be found in the program folder in the folder templates.

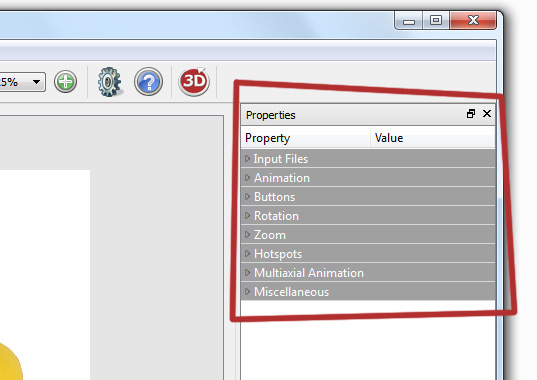

Screenshot feuerball3D Properties
Image: Setting the properties

The sidebar can be added either at the left or the right side of the preview window.
All properties are divided into these groups:

<< back to table of contents

Input files

Template FilePath of the template on the local computer can be changed by File – Select Template.
Images DirectoryPath of image folder on the local computer can be changed by File – Select Images.

<< back to table of contents

Animation

Size of Preview ImagesSets the size of the preview images (as well as the size of the animation if the next property is set true). If a cropping rectangle is used the images will be cropped first and then scaled to this size. If the aspect ratio of the cropping rectangle or the images differ to the aspect ratio of this setting all images will be scaled to fit into this size. Therefore the images could be scaled smaller than the size entered. You are advised to consider the aspect ratio while entering a size.
Set Size of Animation automaticallySize of the animation will be adjusted automatically to the size of the images. Only if you want to use a different size for the animation you should uncheck this property.
Size of AnimationFinal size of animation for the export (normally the same property as ‘Size of Preview Images’; but can be set smaller or bigger the the images).
Transparent BackgroundThe Background of an animation (not the background of the images!) can be set transparent. Areas surrounding the images (only existing if ‘Size of Animation’ is bigger than Size of Preview Images) in an animation will thus get a transparent background.
Background ColorSame scheme like Transparent Background but using a color instead of transparency.

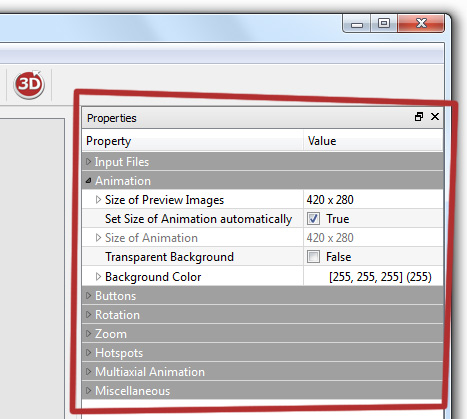

Screenshot feuerball3D Properties Animation
Image: Properties – Animation

<< back to table of contents

Buttons

Button StyleChoose between three different button styles for the animation. Style ‘Custom’ is consisted of many picture files which can be changed individually. All picture files can be found in the folder style/custom_navi after the creation of the animation.
Button Color1Button styles Basic and Future can be colored. Button Color 1 is the outside color of the buttons.
Button Color2Button styles Basic and Future can be colored. Button Color 2 is the inside color of the buttons.
Width of Horizontal Control BarWidth of navigation (Control bar for left and right) of button style Basic and Custom is in pixel size.
Height of Vertical Control BarHeight of navigation (Control bar for up and down) of button style Basic and Custom is in pixel size.
Display of Control BarShows/hides the navigation (Control bar for left/right and up/down) in different situations.

<< back to table of contents

Rotation

Automatic Rotation at StartSets the animation to either rotate at start automatically for one rotation (once), to rotate until any user action (always), or to do not rotate at start (none).
Speed of Auto. RotationInterval between images while rotating automatically (in milliseconds). The smaller this property is the faster the images will be displayed in sequence (e.g. 40). The bigger this property is the slower the images will be displayed in sequence (e.g. 300).
Restart of Auto. Rotation after Inactivity (in s)Restarts the automatic rotation after a time interval (in seconds) with no user action.
Play-/Pause ButtonEnables/disables the Play-/Pause button which enables the user to start/stop the automatic rotation of an animation.
Position of Play-/Pause ButtonPositions the button in x- and y-direction from the top left (in pixel size). Value 0 or no value will position the button on its standard position.
Blur ImagesEnables/disables the blur effect occurring while the user drags & drops the animation.
Reverse RotationInverts the order of images in the animation. The first image will stay first but all other images will be displayed in inverse sequence.

<< back to table of contents

Zoom

ZoomZoom (zoom display/technique):
– No Zoom: No zoom images will be processed and the zoom will not be used.
– Simple Zoom: Zoom images will be processed. There is only one button controlling the zoom (totally zoom-in, totally zoom-out).
– Continuous Zoom: Zoom images will be processed. By using a slider the zoom images can be zoomed progressively.
– Deep-Zoom: Each zoom image will be processed in tiles. By using a slider the zoom images can be zoomed progressively. Ideal for huge zoom images (e.g. from 2500 pixel size) because of optimized loading time.
Size of Zoom ImagesSize of zoom images in the animation. If a cropping rectangle is used the images will be cropped first and then scaled to this size. If the aspect ratio of the cropping rectangle or the images differ to the aspect ratio of this setting all images will be scaled to fit into this size. Therefore the images could be scaled smaller than the size entered. You are advised to consider the aspect ratio while entering a size.
Crop RectangleSize and position of the crop rectangle is shown in the preview window. Every part of an image outside the crop rectangle will be clipped. Afterward the pictures are scaled and used for the animation.
The crop rectangle is applied to all images automatically. The crop rectangle can be exactly defined in pixel size and pixel position. Thus exact clippings are possible.
Size of Zoom TilesIf Deep-Zoom is used all zoom images will be tiled. The size of those zoom tiles can be entered in pixel size. Usually 256 pixels are used for this size.
Position of Zoom ButtonPositions the button in x- and y-direction from the top left (in pixel size). Value 0 or no value will position the button on its standard position.
Zoom FunctionFunctions of zoom images and usage of buttons during zoom:
– Drag & Drop: Zoom images can be dragged during zoom.
– Rotation: Position of zoom images is automatically bound to the position of the mouse. While dragging the zoom images the animation is rotated.
– Button: There are two additional buttons during zoom. So the user can either drag the images to change the position of the images or to rotate the animation.
Position of Drag ButtonPositions the button in x- and y-direction from the top left (in pixel size). Value 0 or no value will position the button on its standard position.
Position of Rotate ButtonPositions the button in x- and y-direction from the top left (in pixel size). Value 0 or no value will position the button on its standard position.
Fullscreen ButtonEnables/disables the fullscreen button which enables the user to display the animation onto the whole screen.
Position of Fullscreen ButtonPositions the button in x- and y-direction from the top left (in pixel size). Value 0 or no value will position the button on its standard position.

<< back to table of contents

Hotspots

Use Hotspot ButtonEnables/disables the usage of the hotspot button to show/hide hotspots. If you disable the button, all hotspots will be shown permanent.
Position of Hotspot ButtonPositions the button in x- and y-direction from the top left (in pixel size). Value 0 or no value will position the button on its standard position.
Text ColorColor of tooltip texts of hotspot links.
Text Background ColorBackground Color of tooltip texts of hotspot links.
Text Background AlphaTransparency of tooltip background of hotspot links.

<< back to table of contents

Multiaxial Animation

Number of AxesNumber of axes used in the animation. The quantity of images will be divided by this number and the images will thus be partitioned in axes.
Example: 64 images are loaded into the program. Using 4 axes partitions images to 16 images per 4 rows/axis’.
Start AxisSets the axis which will be shown at start of the animation.
Complete Rotation inSets in which direction the user can rotate the animation.
– All Axes: The animation is a full 3D animation and all images in all axes are consecutive. The user can switch/rotate from the last to the first image in every axis.
– Horizontal Axis: The animation is a single axis horizontal animation or contains vertical axis which are not completed/consecutive. The user can switch/rotate from the last to the first image in horizontal direction but not in vertical direction.
– Vertical Axis: The animation is a single axis vertical animation or contains horizontal axis which are not completed/consecutive. The user can switch/rotate from the last to the first image in vertical direction but not in horizontal direction.
– No Axes: The animation is consecutive in no direction/axes (e.g. 180° animation). The user can neither switch/rotate from the last to the first image in vertical direction nor in horizontal direction.

<< back to table of contents

Miscellaneous

Image Quality in %JPG-compression of preview- and zoom images.
Font StyleUsed font family for hotspot texts.
Font SizeUsed font size for hotspot texts.
Audio FileChoose an audio file (MP3-format) which will be played during the automatic rotation.
Position of Audio ButtonPositions the button in x- and y-direction from the top left (in pixel size). Value 0 or no value will position the button on its standard position.

<< back to table of contents

7. Create Animation

After having set all properties to your demand you can now create the animation.
Just click onto the shortcut icon Create Animation.

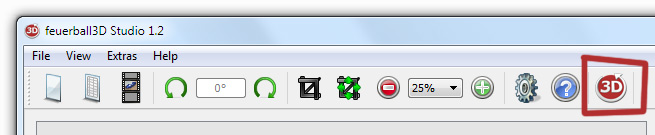

Screenshot feuerball3D Animation Button
Image: Toolbar – Create Animation

Having clicked on the icon a dialog box I shown in which project name, target directory as well as the file format can be set.

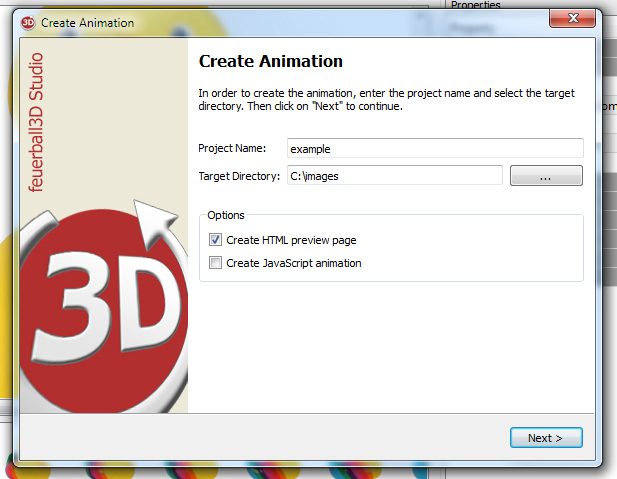

Screenshot feuerball3D Create Animation
Image: Create Animation

– Project Name
Name of the animation. The name will be used for images, image folder, the XML-file (contains all settings) as well as the HTML pages.

– Target Directory
All files needed for the animation will be stored in the target directory. In addition to the image folder with all images and the XML-file, further files (depending on which export format has been chosen) will be stored there.

– Create HTML preview page
If set a HTML-page will be created in which the animation is included. The animation is included as a flash animation and can be viewed in any browser using the flash plugin.
The HTML-page is named by the project name with the ending .html.

– Create JavaScript animation
If set a HTML-page will be created in which the animation is included. The animation is included HTML5-ready as JavaScript animation and can be viewed in any browser with activated JavaScript. In addition the animation is also included as a flash animation. Thus for every user the best solution is being displayed.
The HTML-page is named by the project name with the ending _js.html.


After having set all properties on this page you can press next to start the processing (crop and scale) of the images and finish the creation of the animation. Finally you can access the animation and its project folder directly with a link.

<< back to table of contents

8. Include 360-degree animation to a website

If you have customized your animation in feuerball3D Studio and are satisfied with the settings you are ready to embed the animation into your existing website.

<< back to table of contents

What needs to be uploaded?

First upload the project folder (containing all preview and zoom-images of your animation) to the server of your website. Additionally, upload the XML file (containing all settings of your animation) to the server of your website as well.

Depending on which technique you want to use to display your animation (flash, HTML5/JavaScript) you need the special player files.

FlashYou need the flash-viewer-file (feuerball3D.swf). If you use the custom button style you will also need the style-folder.
JavaScriptYou need the folders named js and style.

Make sure that all files and folders are in the same directory (otherwise you have to adjust the file paths in some way). Location and name of the product images are located in the XML file. Therefore, it is essential that the image-folder on the server bears the project name.

Note: If you are not sure what to upload, just upload everything what was exported by feuerball3D Studio to the server of your website. You can’t go wrong with that!

<< back to table of contents

How to embed the animation on websites?

There are many different ways in which an animation can be included to a website. Not all of them may be suitable for your website. Here two simple examples are mentioned. For further information or questions don’t hesitate to contact us.
Example one will work almost everywhere. It is the same technique as if you include a video (e.g. from YouTube). For both examples you have to export a sample HTML-page of the animation during the creation of the animation.

1. Embedding as an iFrame:
Just upload everything to your server and embed the animation by using the following code on your website:

<iframe width="450" height="330" src="http://www.yourserver.com/animations/example.html" frameborder="0" allowfullscreen></iframe>

Copy the lines in your web page (HTML file/editor) and adjust the file paths and animation size to your needs. The included HTML-file is the exported HTML-sample file. Either the flash – or JavaScript – (example file).

2. Direct embedding:
Just upload everything to your server except the sample HTML-file. Then open the sample HTML-file using a text editor and copy everything between <body> and </body>. Copy the to your web page (HTML file/editor) and use it there.
If you use the JavaScript-version you also have to include the JavaScript- and style-files (copy everything between </title> and </head>) in your web page.

Note: Depending on where you include the animation on your site some paths may have to be adjusted.

<< back to table of contents

How to include the animation on special sites (e.g. eBay)?

Since you can not upload animations unlike still images on eBay you first have to upload the animation to your server or your website online.
Due to security reasons eBay does not allow to include JavaScript-animations. You have to use the flash-animation only.
In order for the animation, located on your server, will be displayed on the eBay auction page you need to use absolute paths. This will look like:

<object classid="clsid:d27cdb6e-ae6d-11cf-96b8-444553540000" width="450" height="330">
     <param name="movie" value="http://www.yourserver.com/animation/feuerball3D.swf?imgdata=http://www.yourserver.com/animation/example" />
     <embed src="http://www.yourserver.com/animation/feuerball3D.swf?imgdata=http://www.yourserver.com/animation/example" width="450" height="330" />
</object>

As well as the flash-viewer-file (feuerball3D.swf), the XML file (without extension) example has to be called with absolute paths.

Note: In contrast to previous animations, it is no longer necessary to adjust the XML file. The paths there are adjusted by the viewer files.

<< back to table of contents

9. Tips and tricks to create perfect product images for a 360° animation

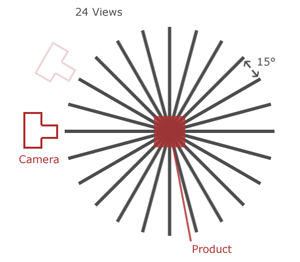

Basic requirement for 360-degree animations are product images shot from different angles of the object. The animation can build by using any any number of product images. To ensure a steady rotation, the product images should been taken in even steps / angles (see picture). For 24 images for a horizontal 360° rotation the perfect angle of each step is 15° (360° / 24).

Camera steps to rotate product view
Image: Example of a 360-degree animation with 24 product images

The final product images can be used for the 360° product animation with both the existing background, as well as knocked out. Feuerball3D has a zoom feature which can reload high resolution images of your product to runtime. If you wish to use this zoom feature, so be sure that your product thumbnails are miniature images of the high resolution zoom images and have not been cut separately. Otherwise, there may be some display errors during zoom. Save all product images as image-files (e.g., JPG file format).

In order to achieve optimal results for the 360° animation, look at the following tips and tricks:

  • Take a photo of your products against a plain background or knock out your product images. Thus the background will no longer interfere on the animation.
  • Take advantage of using a turntable to shot images of the product. It allows you to adjust the angle more evenly. So your animation will rotate more steady.
  • The ideal number of product images, which are required for a 360° rotation is between 20 and 36 images. Using fewer images may occur in too much jiggle during the animation. With more than 36 images no appreciable improvement of the process is achieved and only the loading time will increase. In addition, the effort in image processing increases with the number of images used.

<< back to table of contents

10. FAQs & appropriate solutions

On this page you will find a selection of frequently asked questions to feuerball3D editor. If you have a question that is not answered here, please write us (info@feuerball-design.de).

Is feuerball3D Studio able to create a 360° animation as a single Flash file (with all the images in one file)?

No, feuerball3D Studio saves the settings of a 360° animation as an XML file. This XML file is then read by an existing Flash animation and the images are loaded accordingly.
The disadvantage is that several files have to be transferred to the server. The advantage, however, is that the loading time is much shorter, as only those files are loaded that are viewed by the user.

Which files do I have to upload to my server / website?

Simply upload everything you get while exporting an animation. You can’t go wrong with that!

<< back to table of contents

12. About feuerball3D

Feuerball3D Studio helps you to easily create 360-degree product animations. If you’d like more information concerning the use and licensing of the 360° animation feuerball3D, then visit our website (www.feuerball3d.de) or send us an email (info@feuerball-design.de).

<< back to table of contents
